DT-300 zeta potential with no dilution

Basic Models with additional OPTIONS and ACCESSORIES. Download BROCHURES.

Zeta potential probe DT-300 and DT-310 when titration is included.

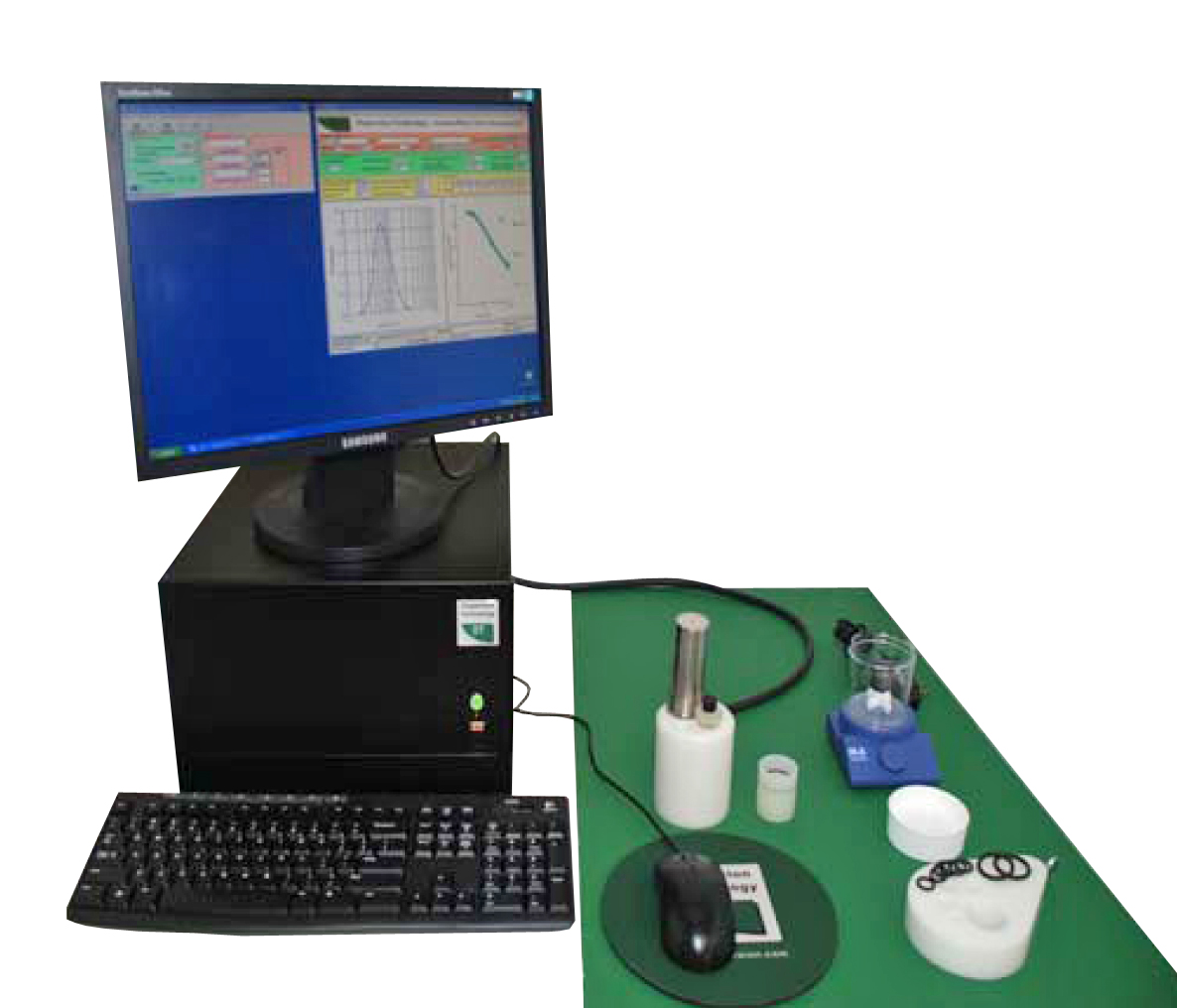

Zeta potential analyzer
Zeta potential analyzer

These instruments have Zeta potential probe that allows characterizing concentrated dispersions and emulsions with no dilution. They yield information on the following parameters:

– zeta potential in concentrated dispersions and emulsions when volume fraction >1 %
– electric surface charge density when conductivity known
– iso-electric point when model DT310
– optimum dose of surfactant
– sedimentation stability of the sample
– presence of small amounts of large sedimenting particles

Zeta potential probe can be simply inserted into the sample. Alternatively, a plastic cup on the top face of the probe serves as a sample holder.  Accordingly, the sample volume in this setup is under 1 ml.

There are several options available for this instrument. Conductivity probe allows monitoring ionic strength and estimate Debye length when samples are aqueous. In case when samples are non-aqueous, standalone instrument DT700 yields conductivity for such calculations. Temperature and pH probe are also optional.

Advantages over micro-electrophoresis and ELS:

  • no dilution when volume fraction up to 50%
  • less sensitive to contamination
  • higher precision (± 0.1 mV)
  • low charges (down to 0.1 mV)
  • electro-osmotic flow is not important
  • convection is not important
  • accurate for non-aqueous dispersions
